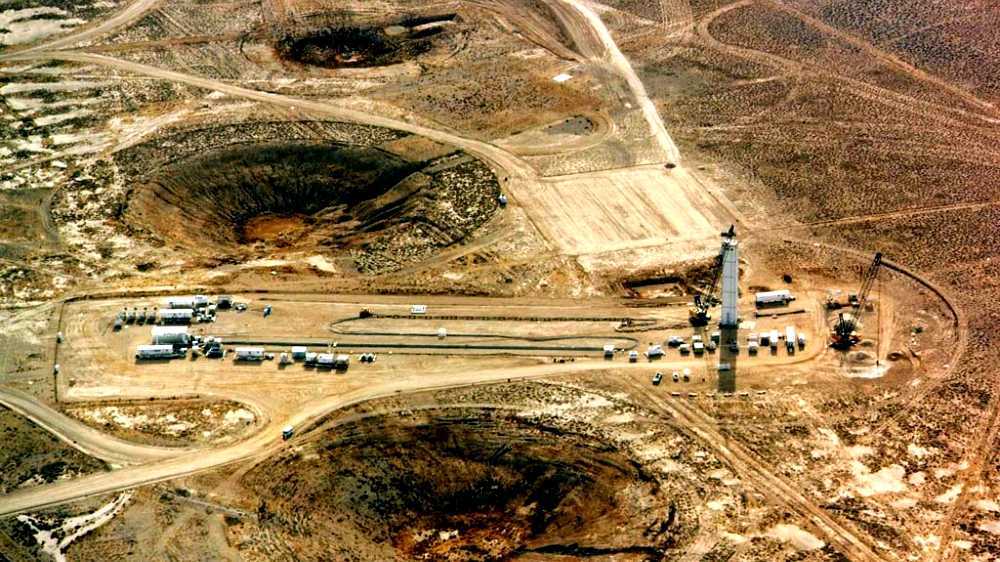

Nevada Test Site

src: nuclearweaponarchive.org

The Nevada National Security Site (N2S2),(though the abbreviation NNSS is still used), previously the Nevada Test Site (NTS), is a United States Department of Energy reservation located in southeastern Nye County, Nevada, about 65 miles (105 km) northwest of the city of Las Vegas. Formerly known as the Nevada Proving Grounds, the site was established on 11 January 1951 for the testing of nuclear devices, covering approximately 1,360 square miles (3,500 km²) of desert and mountainous terrain. Nuclear weapons testing at the Nevada Test Site began with a 1-kiloton-of-TNT (4.2 TJ) bomb dropped on Frenchman Flat on 27 January 1951. Many of the iconic images of the nuclear era come from the NTS. NNSS is operated by National Security Technologies, LLC, a joint venture of Northrop Grumman, AECOM, CH2M Hill, and Babcock & Wilcox.

During the 1950s, the mushroom clouds from the 100 atmospheric tests could be seen for almost 100 mi (160 km). The city of Las Vegas experienced noticeable seismic effects, and the distant mushroom clouds, which could be seen from the downtown hotels, became tourist attractions. St. George, Utah, received the brunt of the fallout of above-ground nuclear testing in the Yucca Flats/Nevada Test Site. Winds routinely carried the fallout of these tests directly through St. George and southern Utah. Marked increases in cancers, such as leukemia, lymphoma, thyroid cancer, breast cancer, melanoma, bone cancer, brain tumors, and gastrointestinal tract cancers, were reported from the mid-1950s through 1980. A further 828 nuclear tests were carried out underground.

From 1986 through 1994, two years after the United States put a hold on full-scale nuclear weapons testing, 536 anti-nuclear protests were held at the Nevada Test Site involving 37,488 participants and 15,740 arrests, according to government records. Those arrested included the astronomer Carl Sagan and the actors Kris Kristofferson, Martin Sheen, and Robert Blake.

The Nevada Test Site contains 28 areas, 1,100 buildings, 400 miles (640 km) of paved roads, 300 miles of unpaved roads, 10 heliports, and two airstrips.

Video Nevada Test Site

History

The Nevada Test Site was established as a 680-square-mile (1,800 km²) area by President Harry S. Truman on December 18, 1950, within the Nellis Air Force Gunnery and Bombing Range.

1951-1992

The Nevada Test Site was the primary testing location of American nuclear devices from 1951 to 1992; 928 announced nuclear tests occurred there. Of those, 828 were underground. (Sixty-two of the underground tests included multiple, simultaneous nuclear detonations, adding 93 detonations and bringing the total number of NTS nuclear detonations to 1,021, of which 921 were underground.) The site is covered with subsidence craters from the testing.

The NTS was the United States' primary location for tests in the 500-to-1,000 kt (2,100-to-4,200 TJ) range. 126 tests were conducted elsewhere, including most larger tests. Many of these occurred at the Pacific Proving Grounds in the Marshall Islands.

During the 1950s, the mushroom clouds from atmospheric tests could be seen for almost 100 mi (160 km). The city of Las Vegas experienced noticeable seismic effects, and the distant mushroom clouds, which could be seen from the downtown hotels, became tourist attractions. The last atmospheric test detonation at the Nevada Test Site was "Little Feller I" of Operation Sunbeam, on 17 July 1962.

Although the United States did not ratify the Comprehensive Nuclear-Test-Ban Treaty, it honors the articles of the treaty, and underground testing of weapons ended as of 23 September 1992. Subcritical tests not involving a critical mass continue.

One notable test shot was the "Sedan" shot of Operation Storax on 6 July 1962, a 104-kiloton-of-TNT (440 TJ) shot for Operation Plowshare, which sought to prove that nuclear weapons could be used for peaceful means in creating bays or canals. It created a crater 1,280 feet (390 m) wide and 320 feet (100 m) deep that can still be seen today.

1992-present

The site was scheduled to be used to conduct the testing of a 1,100-ton conventional explosive in an operation known as Divine Strake in June 2006. The bomb is a possible alternative to nuclear bunker busters. After objections from Nevada and Utah's members of Congress, the operation was postponed until 2007. On 22 February 2007, the Defense Threat Reduction Agency (DTRA) officially canceled the experiment. On December 7, 2012 the most-recent explosion was conducted, an underground sub-critical test of the properties of plutonium.

Maps Nevada Test Site

Destruction and survivability testing

NTS also performed "piggyback" testing of effects of nuclear detonation during the above-ground tests. Vehicles, shelters, utility stations, and other structures were placed at various distances from the "Ground Zero" detonation point of each weapon.

Homes and commercial buildings were built to standards typical of American and European cities. Other structures included military fortifications (of types used by both NATO and the Warsaw Pact), civil defense, and "backyard" shelters. In a typical test, several buildings might be built using the same plan with different types of paint, landscaping, cleanliness of yards, wall angles, or distances from Ground Zero. Mannequins were placed in and around vehicles and buildings.

High-speed cameras were placed in protected locations to capture effects of radiation and shock waves. Typical imagery from these cameras shows paint boiling off the buildings, which then are pushed away from Ground Zero by the shock wave before being drawn toward the detonation by the suction caused by the climbing mushroom cloud. Footage from these cameras has become iconic, used in various media and available in the public domain and on DVD.

This testing allowed the development of guidelines, distributed to the public, to increase the likelihood of survival in case of air- or spaceborne nuclear attack.

Nevada Test Site and Nevada National Security Site - EEOICPA ...

src: coldwarcancerfund.com

Environmental impact

Each of the below ground explosions--some as deep as 5,000 feet--vaporized a large chamber, leaving a cavity filled with radioactive rubble. About a third of the tests were conducted directly in aquifers, and others were hundreds or thousands of feet below the water table.

When underground explosions ended in 1992, the Department of Energy estimated that more than 300 megacuries (11 EBq) of radioactivity remained in the environment at that time, making the site one of the most radioactively contaminated locations in the United States. In the most seriously affected zones, the concentration of radioactivity in groundwater reaches millions of picocuries per liter. (The federal standard for drinking water is 20 picocuries per liter (0.74 Bq/l).) Although radioactivity levels in the water continue to decline over time, the longer-lived isotopes like plutonium or uranium could pose risks to workers or future settlers on the NNSS for tens of thousands of years.

The Energy Department has 48 monitoring wells at the site, and began drilling nine deep wells in 2009. Because the contaminated water poses no immediate health threat, the department has ranked Nevada as low priority for cleaning up major nuclear weapons sites, and it operates far fewer wells than at most other contaminated sites. In 2009, tritium with a half-life of 12.3 years was first detected in groundwater off-site of the NTS northwest corner in Pahute Mesa, near where the 1968 Benham and 1975 Tybo tests were conducted.

The DOE issues an annual environmental monitoring report containing data from the 48 monitoring wells both on and off site.

src: www.state.nv.us

Protests and demonstrations

From 1986 through 1994, two years after the United States put a hold on full-scale nuclear weapons testing, 536 demonstrations were held at the Nevada Test Site involving 37,488 participants and 15,740 arrests, according to government records.

On February 5, 1987, more than 400 people were arrested, when they tried to enter the nation's nuclear proving grounds after nearly 2,000 demonstrators held a rally to protest nuclear weapons testing. Those arrested included the astronomer Carl Sagan and the actors Kris Kristofferson, Martin Sheen, and Robert Blake. Five Democratic members of Congress attended the rally: Thomas J. Downey, Mike Lowry, Jim Bates, Leon E. Panetta, and Barbara Boxer.

American Peace Test (APT) and Nevada Desert Experience (NDE) held most of these. In March 1988, APT held an event where more than 8,000 people attended a ten-day action to "Reclaim the Test Site", where nearly 3,000 people were arrested with more than 1,200 in one day. This set a record for most civil disobedience arrests in a single protest. American Peace Test was collectively run by a group of individuals residing in Las Vegas, but leadership for the group was national. It originated with a small group of people who were active in the National Nuclear Weapons Freeze. APT was a breakaway organization beginning in 1986, with first public events held in 1987.

In the years that followed 1994, Shundahai Network in cooperation with Nevada Desert Experience and Corbin Harney continued the protests of the government's continued nuclear weapons work and also staged efforts to stop a repository for highly radioactive waste adjacent to the test site at Yucca Mountain, 100 mi (160 km) northwest of Las Vegas.

File:Nevada test site - gate 1.jpg - Wikipedia

src: upload.wikimedia.org

Modern usage

The test site offers monthly public tours, often fully booked months in advance. Visitors are not allowed to bring in cameras, binoculars, or cell phones, nor are they permitted to pick up rocks for souvenirs.

While there are no longer any explosive tests of nuclear weapons at the site, there is still subcritical testing, used to determine the viability of the United States' aging nuclear arsenal. Additionally, the site is the location of the Area 5 Radioactive Waste Management Complex, which sorts and stores low-level radioactive waste that is not transuranic and has a half life not longer than 20 years. Bechtel Nevada Corporation (a joint venture of Lockheed Martin, Bechtel, and Johnson Controls) ran this complex until 2006. Several other companies won the bid for the contract since and combined to form a new company called National Security Technologies, LLC (a joint venture of Northrop Grumman, AECOM, CH2M Hill, and Nuclear Fuel Services). AECOM, known earlier as Holmes and Narver, held the Nevada Test Site contract for many years before Bechtel Nevada Corporation had it.

The Radiological/Nuclear WMD Incident Exercise Site (T-1), which replicates multiple terrorist radiological incidents with train, plane, automobile, truck, and helicopter props is located in Area 1, at the former site of tests EASY, SIMON, APPLE-2, and GALILEO.

Atomic Journeys - The Nevada Test Site - YouTube

src: i.ytimg.com

Landmarks and geography

A table of interesting places in and around the NNSS is presented here, which corresponds with many of the descriptions in the Nevada Test Site Guide.

Cameraman's close call at the Nevada Test Site - YouTube

src: i.ytimg.com

Cancer and test site

St. George, Utah received the brunt of the fallout of above-ground nuclear testing in the Yucca Flats/Nevada Test Site. Winds routinely carried the fallout of these tests directly through St. George and southern Utah. Marked increases in cancers such as leukemia, lymphoma, thyroid cancer, breast cancer, melanoma, bone cancer, brain tumors, and gastrointestinal tract cancers were reported from the mid-1950s through 1980.

On May 19, 1953, the United States government detonated the 32-kiloton (130 TJ) atomic bomb (nicknamed "Harry") at the Nevada Test Site. The bomb later gained the name "Dirty Harry" because of the tremendous amount of off-site fallout generated by the bomb. Winds carried fallout 135 miles (217 km) to St. George, where residents reported "an oddly metallic sort of taste in the air."

The Howard Hughes motion picture, The Conqueror, was being filmed in the area of St. George at the time of the detonation. The fallout is often blamed for the unusually high percentage of cancer deaths among the cast and crew. However, the rates of cancer from that cast and crew (>90 out of 220) were almost identical to the general population, in which 43% may be expected to contract cancer in their lifetimes, and 23% die from it. Nonetheless, there are speculations of a connection.

A 1962 United States Atomic Energy Commission report found that "children living in St. George, Utah may have received doses to the thyroid of radioiodine as high as 120 to 440 rads" (1.2 to 4.4 Gy). A 1979 study reported in the New England Journal of Medicine concluded that:

A significant excess of leukemia deaths occurred in children up to 14 years of age living in Utah between 1959 and 1967. This excess was concentrated in the cohort of children born between 1951 and 1958, and was most pronounced in those residing in counties receiving high fallout.

In 1982, a lawsuit brought by nearly 1,200 people accused the government of negligence in atomic and/or nuclear weapons testing at the Nevada Test Site in the 1950s, which they said had caused leukemia and other cancers. Dr. Karl Z. Morgan, Director of Health Physics at Oak Ridge National Laboratory, testified that radiation protection measures in the tests were substandard to what was becoming known of best practices at the time.

In a report by the National Cancer Institute, released in 1997, it was determined that ninety atmospheric tests at the Nevada Test Site (NTS) deposited high levels of radioactive iodine-131 (5.5 exabecquerels) across a large portion of the contiguous United States, especially in the years 1952, 1953, 1955, and 1957--doses large enough, they determined, to produce 10,000 to 75,000 cases of thyroid cancer. The Radiation Exposure Compensation Act of 1990 allowed for people living downwind of NTS for at least two years in particular Nevada, Arizona, or Utah counties, between 21 January 1951 and 31 October 1958, or 30 June and 31 July 1962, and suffering from certain cancers or other serious illnesses deemed to have been caused by fallout exposure to receive compensation of $50,000. By January 2006, over 10,500 claims had been approved, and around 3,000 denied, for a total amount of over $525 million in compensation dispensed to "downwinders". By May 2014, the numbers of claims approved had reached 28,880, for a total compensation of $1.9 billion. Additionally, the Energy Employees Occupational Illness Compensation Program Act of 2000 provides compensation and medical benefits for nuclear weapons workers who may have developed certain work-related illnesses.

Uranium miners, mill workers, and ore transporters are also eligible for $100,000 compassionate payment under the Radiation Exposure Compensation Program, while $75,000 is the fixed payment amount for workers who were participants in the above-ground nuclear weapons tests.

Nevada Magazine: Touring the Nevada Test Site

src: 2.bp.blogspot.com

Nuclear test series carried out at the Nevada Test Site

src: cryptome.org

Areas

The Test Site is broken down into areas. Some of the areas and their uses include the following:

Area 1

Area 1 held eight nuclear tests for a total of nine detonations. Four early atmospheric tests were conducted above Area 1 in the early 1950s, as well as three underground tests in 1971 and 1990. In 1955, a Civil Defense experiment (called Operation Cue in the press) studied nuclear blast effects on various building types; a few structures still stand.

Heavy drilling equipment and concrete construction facilities are sited in Area 1. Non-destructive X-ray, gamma ray, and subcritical detonation tests continue to be conducted in Area 1.

The radioactivity present on the ground in Area 1 provides a radiologically contaminated environment for the training of first responders.

Area 2

Area 2 is a division of the Nevada Test Site in the Mojave Desert. The area is located 18 miles south-west of Area 51.

Area 2 was the site of 144 tests comprising 169 detonations. Shot "Gabbs", intended for 1993, was abandoned in place.

Area 3

Area 3 held 266 nuclear tests for a total of 288 detonations, more than in any other area of the NTS.

As part of Operation Tinderbox, on 24 June 1980, a small satellite prototype (DSCS III) was subjected to radioactivity from the "Huron King" shot in a vertical line-of-sight (VLOS) test undertaken in Area 3. This was a program to improve the database on nuclear hardening design techniques for defense satellites.

The final nuclear test detonation at Nevada Test Site was Operation Julin's "Divider" on 23 September 1992, just prior to the moratorium temporarily ending all nuclear testing. Divider was a safety experiment test shot that was detonated at the bottom of a shaft sunk into Area 3.

In 1995 and 1997, plutonium-contaminated soil from "Double Tracks" and "Clean Slate 1" of Operation Roller Coaster (1963) was picked up from the Tonopah Test Range and brought to the Area 3 Radioactive Waste Management Site as a first step in eventually returning Tonopah Test Range to an environmentally neutral state. Corrective action regarding the contaminated material from the "Clean Slate 2" and "Clean Slate 3" tests has yet to be agreed upon.

Area 4

Area 4 held 40 nuclear tests for a total of 44 detonations.

It is home to the Big Explosives Experimental Facility (BEEF).

Area 5

Area 5 held 19 nuclear tests. Five atmospheric tests were detonated, starting on 27 January 1951 at Area 5 as part of Operation Ranger. These were the first nuclear tests at NTS. Further tower detonations were studied at Area 5, and the Grable shot which was fired from a M65 Atomic Cannon located in Area 11 exploded in Area 5. The Priscilla test was conducted at Area 5 on 24 June 1957.

Five underground tests were set up at Area 5; four of those suffered accidental release of radioactive materials. On 16 March 1968, physicist Glenn T. Seaborg toured the upcoming Milk Shake shot of Operation Crosstie. Milk Shake's radioactive release was not detected outside of NTS boundaries.

Area 6

Area 6 held four nuclear tests for a total of six detonations. The only two towns to be established within the boundaries of NTS prior to 1947, BJ Wye and Mule Lick, are located in Yucca Flats, in Area 6. The area features an asphalt runway, that was constructed on top of a dirt landing strip, that existed since the 1950s. Some buildings, including a hangar, are situated near the runway.

The Device Assembly Facility (DAF) was originally built to consolidate nuclear explosives assembly operations. It now serves as the Criticality Experiments Facility (CEF).

The Control Point is the communication hub of the NTS. It was used by controllers to trigger and monitor nuclear test explosions.

In 1982, while a live nuclear bomb was being lowered underground, the base came under attack by armed combatants. The combatants turned out to be a security team conducting an improperly scheduled drill.

Area 7

Area 7 held 92 nuclear tests.

During Operation Buster, four successful tests were conducted via airdrop, with bomber aircraft releasing nuclear weapons over Area 7.

It is also the site of Matthew Reilly's book called Area 7.

Shot "Icecap" planned for 1993 was abandoned in Area 7 following 1992's testing moratorium. The tower, shaft and wiring remain in place, along with a crane intended to lower the nuclear test package into the shaft.

Area 8

Area 8 held 13 nuclear tests for a total of 15 detonations.

Area 8 hosted the "Baneberry" shot of Operation Emery on 18 December 1970. The Baneberry 10 kt (42 TJ) test detonated 900 feet (270 m) below the surface but its energy cracked the soil in unexpected ways, causing a fissure near ground zero and the failure of the shaft stemming and cap. A plume of fire and dust was released, raining fallout on workers in different locations within NTS. The radioactive plume released 6.7 megacuries (250 PBq) of radioactive material, including 80 kCi (3.0 PBq) of Iodine¹³¹.

Area 9

Area 9 held 115 nuclear tests for a total of 133 detonations.

In Area 9, the 74 kt (310 TJ) "Hood" test on 5 July 1957, part of Operation Plumbbob, was the largest atmospheric test ever conducted within the continental United States; nearly five times larger in yield than the bomb dropped on Hiroshima. A balloon carried Hood up to 460 meters above the ground where it was detonated. Over 2,000 troops took part in the test in order to train them in conducting operations on the nuclear battlefield. 11 megacuries (410 PBq) of iodine-131 (¹³¹I) were released into the air.

Area 10

Area 10 held 57 nuclear tests for a total of 71 detonations.

The first underground test at NTS was the "Uncle" shot of Operation Jangle. Uncle detonated on 29 November 1951 within a shaft sunk into Area 10.

The "John" shot of Plumbbob, on 19 July 1957, was the first test firing of the nuclear-tipped AIR-2 Genie air-to-air rocket designed to destroy incoming enemy bombers with a nuclear explosion. The 2 kt (8.4 TJ) warhead exploded approximately three miles above five volunteers and a photographer who stood unprotected at "ground zero" in Area 10 to show the apparent safety of battlefield nuclear weapons to personnel on the ground. The test also demonstrated the ability of a fighter aircraft to deliver a nuclear-tipped rocket and avoid being destroyed in the process. A Northrop F-89J fired the rocket.

The "Sedan" test of Operation Storax on 6 July 1962, a 104 kt (440 TJ) shot for the Operation Plowshare which sought to discover whether nuclear weapons could be used for peaceful means in creating lakes, bays or canals. The explosion displaced twelve million tons of earth, creating the Sedan crater which is 1,280 feet (390 m) wide and 320 feet (100 m) deep.

Area 11

Area 11 held 9 nuclear tests. Four of the tests were weapons safety experiments conducted as Project 56; they spread so much harmful radioactive material around the test sites that Area 11 has been called "Plutonium Valley". As is the case with Area 1, background radiation levels make Area 11 suitable for realistic training in methods of radiation detection.

Area 12

Area 12 held 61 nuclear tests between 1957 and 1992, one of which involved two detonations. All tests were conducted below Rainier and Aqueduct mesas.

Area 12 was the primary location for tunnel tests and used almost exclusively for that purpose. The tunnel complexes mined into Rainier and Aqueduct Mesa include the B-, C-, D-, E-, F-, G-, I-, J-, K-, N-, P-, and T-Tunnel complexes, and the R- and S- shafts.

Area 13

There is no Area 13 within NNSS, though such a name is attached to a section of Nellis Air Force Range which abuts the northeastern corner of Area 15. Project 57's weapons safety test was conducted here on 24 April 1957, spreading particles emitting alpha radiation over a large area.

Area 14

Area 14 occupies approximately 26 square miles (67 km²) in the central portion of the NNSS. Various outdoor experiments are conducted in this area. No atmospheric or underground nuclear tests were conducted in Area 14.

Area 15

Three underground detonations took place in area 15 in the 1960s.

Pile Driver was a notable Department of Defense test. A large underground installation was built to study the survivability of hardened underground bunkers undergoing a nuclear attack. Information from the test was used in designing hardened missile silos and the North American Aerospace Defense Command facility in Colorado Springs.

The abandoned Crystal and Climax mines are found in Area 15. Storage tanks hold contaminated materials.

From 1964 to 1981, the Environmental Protection Agency operated a 36-acre (150,000 m²) experimental farm in Area 15. Extensive plant and soil studies evaluated the uptake of pollutants in farm-grown vegetables and from the forage eaten by a dairy herd of some 30 Holstein cows. Scientists also studied horses, pigs, goats, and chickens.

Area 16

Area 16 held six nuclear tests.

Area 17

No nuclear tests took place in Area 17.

Area 18

Area 18 held five nuclear tests. and includes the Pahute Mesa Airstrip.

Area 19

Pahute Mesa is one of four major nuclear test regions within the Nevada National Security Site (NNSS). It occupies 243 square miles (630 km²) in the northwest corner of the NNSS. The eastern section is known as Area 19 and the western section as Area 20.

A total of 85 nuclear tests were conducted in Pahute Mesa between 1965 and 1992. Three of them -- Boxcar, Benham and Handley -- had a yield of over one megaton. Three tests were conducted as part of Operation Plowshare and one as part of Vela Uniform.

Area 20

Area 22

No nuclear tests took place in Area 22. Area 22 once held Camp Desert Rock, a staging base for troops undergoing atmospheric nuclear blast training; as many as 9,000 troops were camped there in 1955. Desert Rock Airport's runway was enlarged to a 7,500 ft (2,300 m) length in 1969 by the Atomic Energy Commission. It is a transport hub for personnel and supplies going to NNSS and also serves as an emergency landing strip.

Area 23

No nuclear tests took place in Area 23. The town of Mercury, Nevada lies within Area 23. The area is the main pathway to and from NNSS test locations by way of U.S. Route 95. An open sanitary landfill is located to the west of Mercury, and a closed hazardous waste site abuts the landfill. Mercury is also the main management area for the site which includes a bar and large cafeteria, printing plant, medical center, warehousing, fleet management, liquidation and recycling center, engineering offices, dormitories, and other administrative areas for both the O&M contractors, LLNL, LANL, and SNL personnel. At its height in the 1950s and '60s it also held several restaurants, a bowling alley, a movie theater, and a motel.

Area 25

Area 26

No nuclear tests took place in Area 26, the most arid section of the NNSS. An old abandoned mine, the Horn Silver Mine, was used for waste disposal between 1959 and the 1970s; some of the waste is radioactive. Water flow past the shaft could pose a human health risk, so corrective action has been planned.

In 1983 the Department of Defense, the Department of Energy, and the Federal Emergency Management Agency performed the NUWAX-83 tests near Port Gaston in Area 26, simulating the explosion of a nuclear-armed helicopter and the resulting spread of nuclear debris over 65 acres. The radioactive material used to simulate the accident became inert in less than six months.

An eight-square-mile complex was constructed in Area 26 in support of Project Pluto. It consisted of six miles of roads, the critical assembly building, the control building, the assembly and shop buildings, and utilities. Those buildings have been used recently as mock reactor facilities in the training of first responders.

Area 27

Area 28

Area 28 no longer exists; it was absorbed into Areas 25 and 27.

Area 29

No nuclear tests took place in Area 29. The rugged terrain of Area 29 serves as a buffer between other areas of NNSS. A helipad is present at Shoshone Peak.

Area 30

Area 30 occupies approximately 59 square miles (150 km²) at the center of the western edge of the NNSS. Area 30 has rugged terrain and includes the northern reaches of Fortymile Canyon. It is used primarily for military training and exercises.

Area 30 was the site of a single nuclear test, the Crosstie Buggy row charge experiment, part of Operation Plowshare, which involved five simultaneous detonations.

The Nevada National Security Site, formerly known as the Nevada ...

src: c8.alamy.com
